Cod. S6-SSP593WP/BK High flow water pump with cover Stage6 R/T Black Derbi euro 3 / euro 4
DERBI HIGH FLOW WATER PUMP WITH CNC COVER STAGE6 R/T
We offer you the perfect solution to achieve optimal cooling for your Derbi, Aprilia or Gilera Moto 50, while maintaining a mechanical water pump.
DERBI STAGE6 R/T WATER PUMP FEATURES

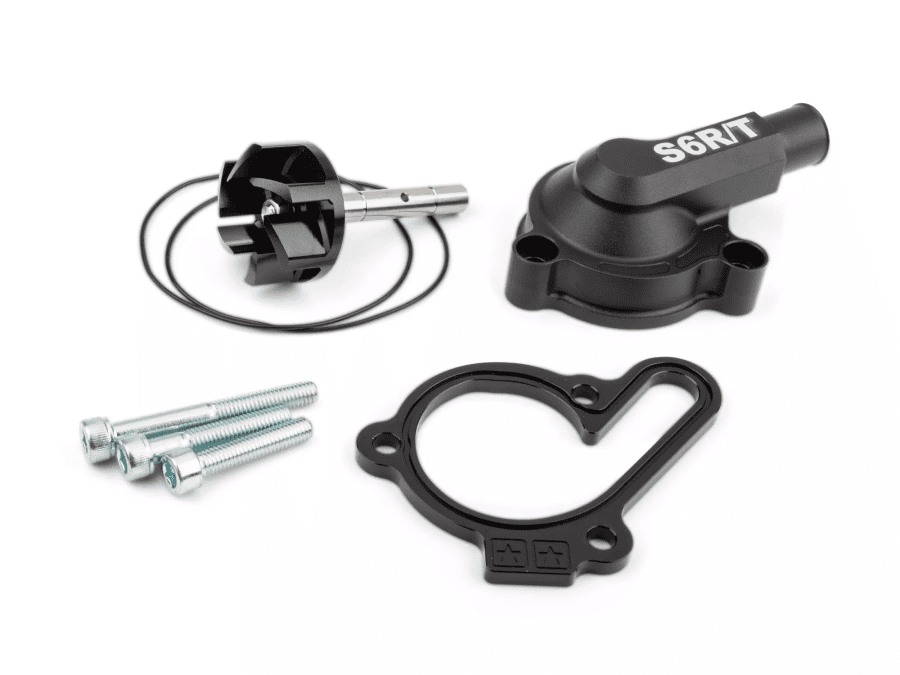

It is essential to monitor the engine temperature, especially for small 50cc engines, especially if they are modified for more power. Installing the Stage6 Derbi high flow water pump can significantly improve the cooling system of the engine. The Stage6 water pump package includes a cover shim, shaft, impeller, O-rings and CNC water pump cover.
With the ability to choose between different colors for the thickness of the cover, you can not only optimize the performance of your bike, but also improve its appearance.
HIGHLIGHTS OF THE STAGE6 HIGH FLOW WATER PUMP:
- Easy Maintenance: High precision stainless steel shaft provides longer life than the original component, being resistant to corrosion.
- Improved Cooling Capacity: The pump's oversized, CNC-machined, anodized impeller increases cooling capacity, which is essential for the small radiators fitted as standard on Derbi models.
- Personalization: Color anodized water pump cover riser allows for perfect color matching.
- optimal seal: O-rings ensure a perfect seal without the need for paper gaskets or sealants.
THE BONUS OF THIS PACKAGE: THE STAGE6 R/T WATER PUMP COVER
- Improved cooling: The optimised internal shape for the larger turbine improves cooling capacity compared to the original Derbi cover.
- Improved Aesthetics: The CNC aluminum water pump cover, featuring a stylish R/T logo, offers a much better aesthetic than the original casting.
DERBI HIGH FLOW WATER PUMP INSTALLATION
Installing the Stage6 water pump for Derbi is easy: start by emptying the cooling system, dismantling the water pump cover and removing the original impeller. When dismantling, check the condition of the water pump spinnaker gasket and replace if necessary.
To reassemble, reinstall the water pump shaft with the Stage6 impeller, mount the riser shim with the corresponding O-rings and close with the Stage6 R/T water pump cover. Then connect the Derbi cooling hoses and bleed the cooling system. It is recommended to replace the old coolant with new.
DERBI STAGE6 WATER PUMP DETAILS:
- Lid Lifting Wedge: Black
- Water pump cover: black
- Supplied with all the necessary screws for assembly
- For Derbi Euro 3 engine
- For Derbi Euro 4 engine
The Product may be reserved exclusively for competitions in places specially designated for such purposes according to the provisions of the competent sports authorities. We decline all responsibility for improper use.
