SPECS: FLEX REAR MONO
TYPE: YXN01
PRELOAD ADJUSTMENT:YES
EXTENSION/REBOUND ADJUSTMENT:NO
COMPRESSION ADJUSTMENT/Compression:YES/YES
WHEELBASE/LENGTH ADJUSTMENT: NO
HYDRAULIC PRELOAD ADJUSTMENT/Hydraulic preload:NO
DOUBLE COMPRESSION ADJUSTMENT/Double compress.:NO
PNEUMATIC PRELOAD ADJUSTMENT/Pneumatic preload.:NO
YXB simple and effective.
MAXIMUM FUNCTIONALITY ON UNFORTUNATE GROUND

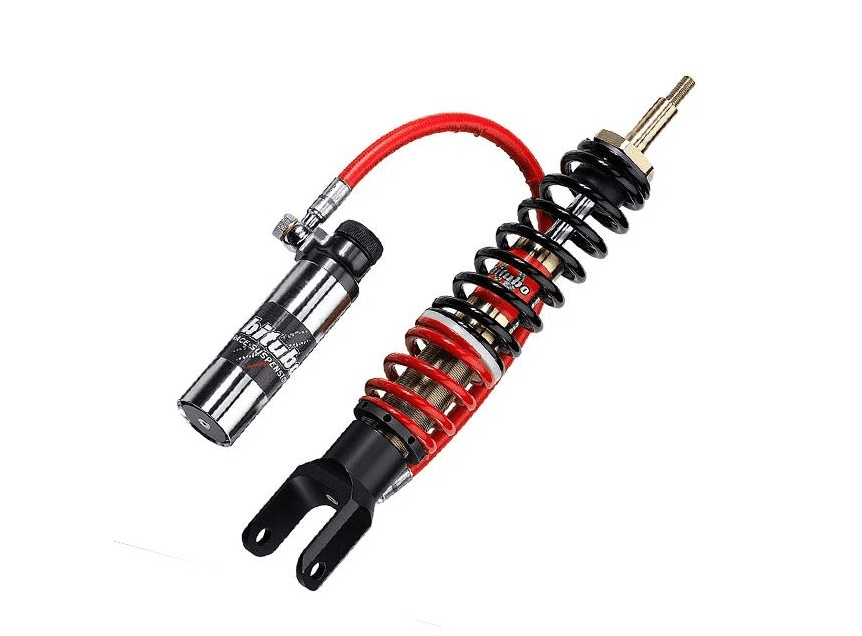

Single chamber, pressurized scooter shock absorber
gas (Nitrogen), with floating piston separator. Calibration
specific for each scooter model. The double system
spring ensures initial comfort and at the same time a
progression of forces that ensures maximum functionality
on the uneven ground.
YGB - YRB the couple.
The YGB pair version is designed for rear mounting,
while the YRB version is specific for the front end. The structure
The mechanics are those of the YXB with specific calibrations for each vehicle.
TECHNICAL FEATURES
Shock absorber body and stem in
treated high strength steel,
upper and lower heads,
and external alloy tray
aluminum machined from solid with
CNC machining.
----
YXB simply effective.
BEST FUNCTIONALITY ON DISCONNECTED GROUND
Single chamber scooter, single shock, gas (Nitrogen)
pressurised, with separate floating piston.
Specific set-up for every scooter model.
The dual spring system ensures an initial comfort
together with a progressive force, thus
ensuring the best functionality on uneven
surfaces.
YGB - YRB twin application.
YGB twinshocks have been created for rear mounting, while
YRB is specific for the front end. The mechanical structure is the
same as YXB with a specific set-up for every vehicle
TECHNICAL FEATURES High
resistance treated shock body
and steel rod, billet aluminium
external tank, upper and lower
heads all CNC machined.
YXB 51 versions with increased wheelbase
compared to the original.
YXB 51 longer length than the original
version.
Compatibility Table
MBK NITRO 50 1997-2000
MBK OVETTO 50 1997-2001
MBK OVETTO 50 2001-2002
MBK OVETTO 50 E2 2002-2003
YAMAHA AEROX 50 1997-2000
MBK NITRO 50 1997-2000
MBK OVETTO 50 1997-2001
MBK OVETTO 50 2001-2002
MBK OVETTO 50 E2 2002-2003
YAMAHA AEROX 50 1997-2000
MBK OVETTO 50 E2 2003
MBK OVETTO 50 E2 2003
MBK OVETTO 50 2002
MBK OVETTO 50 2002
MBK OVETTO 50 1998
MBK OVETTO 50 1999
MBK OVETTO 50 2000
MBK OVETTO 50 2001
MBK OVETTO 50 1998
MBK OVETTO 50 1999
MBK OVETTO 50 2000
MBK OVETTO 50 2001
MBK NITRO 50 1998
MBK NITRO 50 1999
MBK NITRO 50 2000
YAMAHA AEROX 50 1998
YAMAHA AEROX 50 1999
YAMAHA AEROX 50 2000
MBK NITRO 50 1998
MBK NITRO 50 1999
MBK NITRO 50 2000
YAMAHA AEROX 50 1998
YAMAHA AEROX 50 1999
YAMAHA AEROX 50 2000
MINARELLI HORIZONTAL AND VERTICAL
Code: SC089YXN01
The Product may be reserved exclusively for competitions in places specially designated for such purposes according to the provisions of the competent sports authorities. We decline all responsibility for improper use.
