S6-7214043 CYLINDER STAGE 6 STREETRACE cast iron thermal group D.46.95 H20 PIAGGIO/GILERA
Here is the Stage6 Streetrace cast iron 70cc Piaggio-Gilera liquid-cooled cylinder, for all those looking for power and reliability.
This latest generation kit was developed in the laboratories of the German company Stage6 for intensive daily use. The engineers of the brand have sought to offer maximum driving pleasure, providing a gain more torque consequent and also increasing the maximum speed.
With this product, it is totally successful, since its design is cast iron, with a double segment piston and a high compression cylinder head that ensures reliability for intensive use and easy maintenance. The inside of the cylinder, with 6 intake transfers and an oval exhaust port, offers much better performance than the original.
It can develop between 8 and 11 horses with the adapted configuration (see below), and from 1 to 3 horsepower more than other 70cc kits.

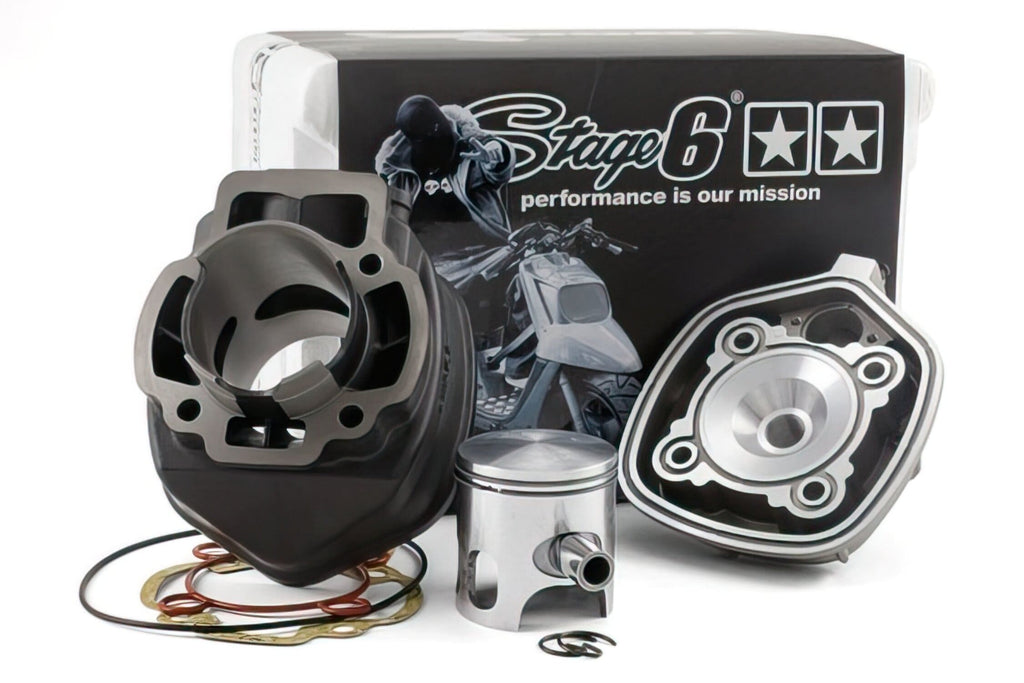

This high power motor set includes the following spare parts:
-
- Cast iron cylinder diam.47mm,
- 12mm double segment piston shaft,
- Aluminum cylindrical head,
- Sealing kit.
If you are looking for reliability and power, this is the 70 cast iron kit you need. It remains discreet because the external mold is a replica of the original cylinder, so it has the annotation "49cc". But we want to reassure you, it is really a 70cc.
Technical information:
-
-
Not approved for road use.
- The cylinder squish is already made by the manufacturer, you will be delivered only one basic gasket.
- 300 km run-in (150 km at ½ gas and 150 km at ¾ gas)
- If you keep the oil pump, use Stage6 oil, its fluidity allows it not to clog the pump's distribution circuit.
| Minimum configuration |
Top Configuration
|
|
|
|
Compatibility Table
PIAGGIO H2O
APRILIA SR (carb.) 50 2T LC 2004-> (PIAGGIO)
APRILIA SR R (carb.) 50 2T LC (PIAGGIO)
DERBI GP1 50 2T LC
DERBI GP1 OPEN 50 2T LC
DERBI GP1 REVOLUTION 50 2T LC
GILERA DNA 50 2T LC
GILERA RUNNER SP 50 2T LC <-2005 GILERA RUNNER SP 50 2T LC 2006-> (C451M)
GILERA RUNNER 50 2T LC
PIAGGIO NRG EXTREME 50 2T LC
PIAGGIO NRG MC2 50 2T LC <-1997 PIAGGIO NRG MC2 50 2T LC 1998->
PIAGGIO NRG 50 2T LC
PIAGGIO NRG MC3 DD 50 2T LC
PIAGGIO NTT 50 2T LC
PIAGGIO NRG Power DD 50 2T LC
PIAGGIO QUARTZ 50 2T LC
PIAGGIO ZIP SP 50 2T LC 2001->
PIAGGIO ZIP SP 50 2T LC <-2000
The Product may be reserved exclusively for competitions in places specially designated for such purposes according to the provisions of the competent sports authorities. We decline all responsibility for improper use.
