cod. S6-7414003 CYLINDER KIT STAGE6 SPORT PRO 70CC D.47,6 PIAGGIO AC ARIA SP.12 ALUMINIUM MKII
For fans of the famous star brand, we offer you this Stage6 70cc Sport MKII Piaggio Typhoon / Stalker cylinder head .
If you are looking for power and reliability, this latest generation cylinder allows you to reach a power between 14 and 17 horsepower , that is about 2-3 horsepower more than the old MKI version.
This latest generation Stage6 cylinder allows you to reach maximum power thanks to its design which offers a very robust engine.
This feat is made possible by a new transfer case design that increases torque and ensures high reliability . The oval exhaust system has been optimized, as have the 6 ports (previously 5) for maximum power .
It is also recommended to add a reinforced crankshaft for greater overall engine reliability , as well as a 19mm minimum carburetor and a Sport or Racing exhaust system.

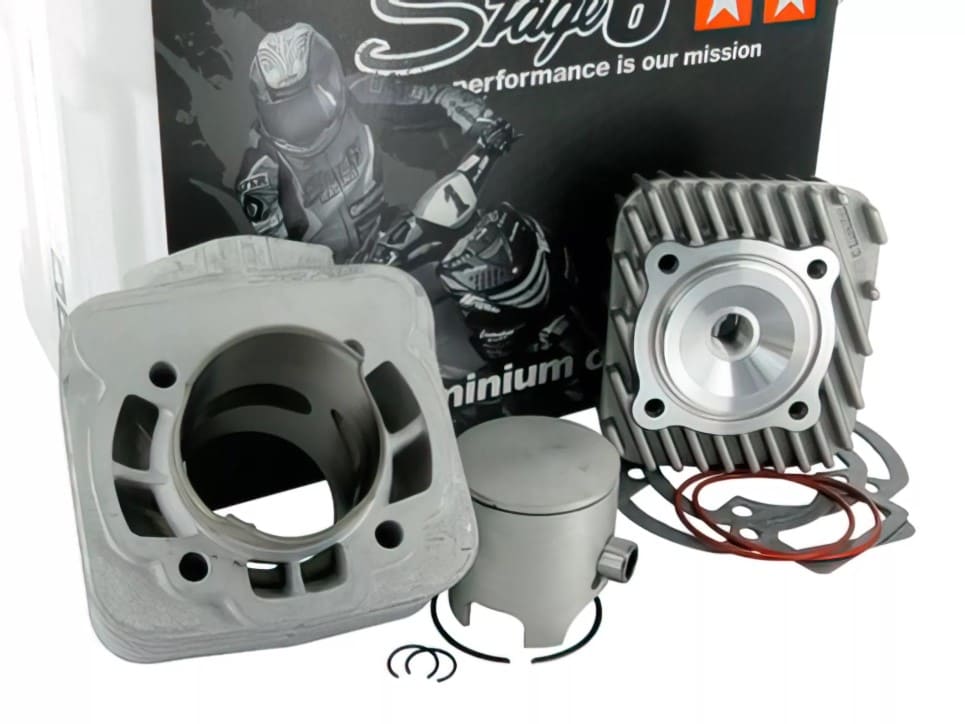

The supply includes:
-
47.6mm diameter aluminum cylinder
-
Single ring piston with 12mm shaft
-
Aluminum cylinder head
- Bag of gaskets
For assembly , we recommend cleaning the engine before any reassembly, checking the condition of the parts and installing a new spark plug and needle cage. Finally, we recommend changing the carburetor settings to avoid tightening.
The cylinder squish should be between 0.75 and 0.85. As for break-in , a minimum of 300 km with a 3% oil mixture will give you strength and durability.
Please note : original exhausts cannot be fitted to this cylinder.
NOT APPROVED
Compatibility Table
PIAGGIO AC AIR
APRILIA MOJITO CUSTOM 50 2T
APRILIA SCARABEO STREET 50 2T (PIAGGIO)
APRILIA SPORTCITY ONE STREET 50 2T euro 2
APRILIA SR MOTARD 50 2T euro 2
DERBI ATLANTIS - BULLET 50 2Q 2003->
DERBI VARIANT Sport 50 2T
GILERA EASY MOVING 50 2T
GILERA ICE 50 2T
GILERA STORM 50 2T
GILERA STALKER 50 2T
GILERA TYPHOON 50 2T
GILERA TYPHOON X 50 2T
ITALJET JETSET 50 2T
ITALJET TORPEDO NEW 50 2T
PIAGGIO DIESIS 50 2T
PIAGGIO NRG EXTREME 50 2T
PIAGGIO FLY 50 2T
PIAGGIO FREE 50 2T
PIAGGIO LIBERTY 50 2T
PIAGGIO NRG MC3 DT 50 2T
PIAGGIO NRG Power DT 50 2T (C453M)
PIAGGIO SFERA RESTYLING 50 2T
PIAGGIO SFERA 50 2T
PIAGGIO TYPHOON 50 2T 2007->2010
PIAGGIO TYPHOON 50 2T euro 2 2011-> (C421M)
PIAGGIO ZIP Fast Rider 50 2T
PIAGGIO ZIP 50 2T 2000->
PIAGGIO ZIP 50 2T <-1999 VESPA ET2 50 2T 2000->
VESPA ET2 50 2T <-1999
VESPA LX 50 2T
VESPA Primavera 50 2T euro 2 (C533M)
VESPA S 50 2T euro 2 (C381M)
VESPA Sprint 50 2T euro 2
Code: S6-7414003
The Product may be reserved exclusively for competitions in places specially designated for such purposes according to the provisions of the competent sports authorities. We decline all responsibility for improper use.
