MXS31445476 CYLINDER KIT MXS RACING MINARELLI VERTICAL - PISTON PIN 12MM MXS RACING

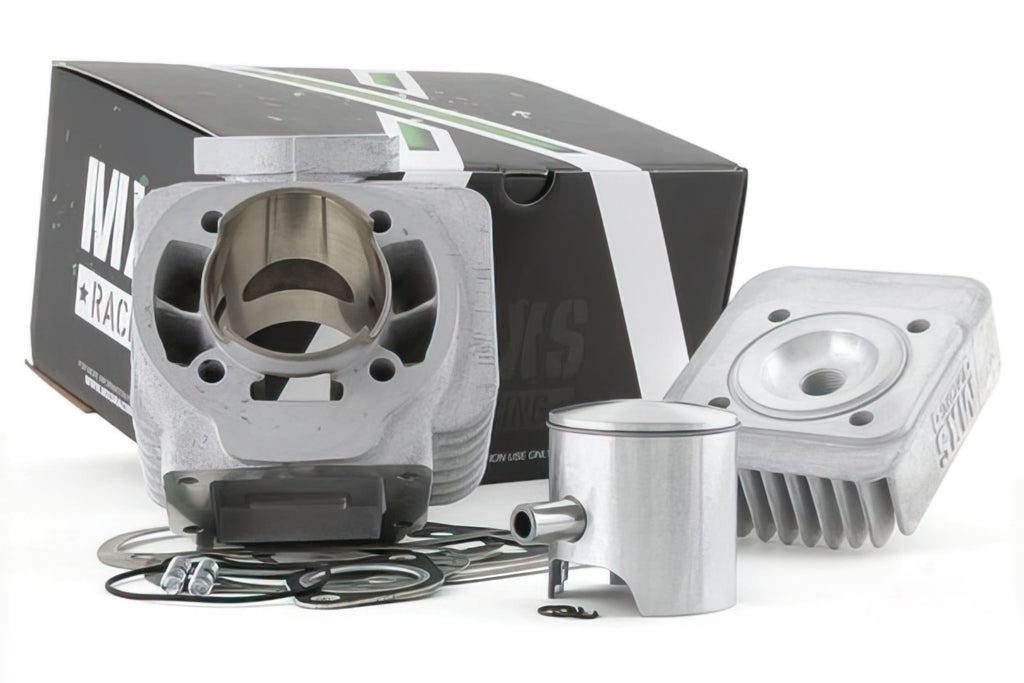

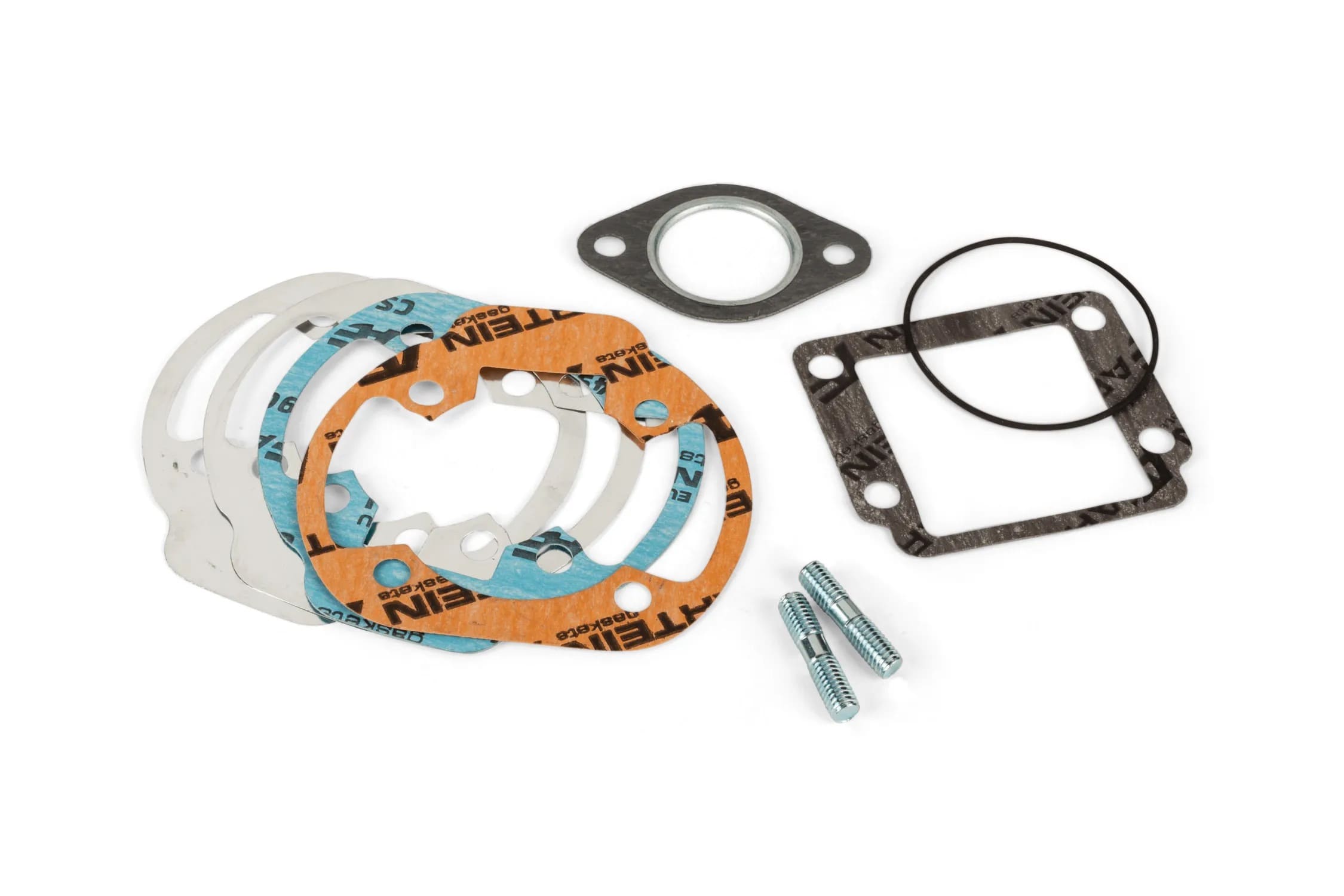

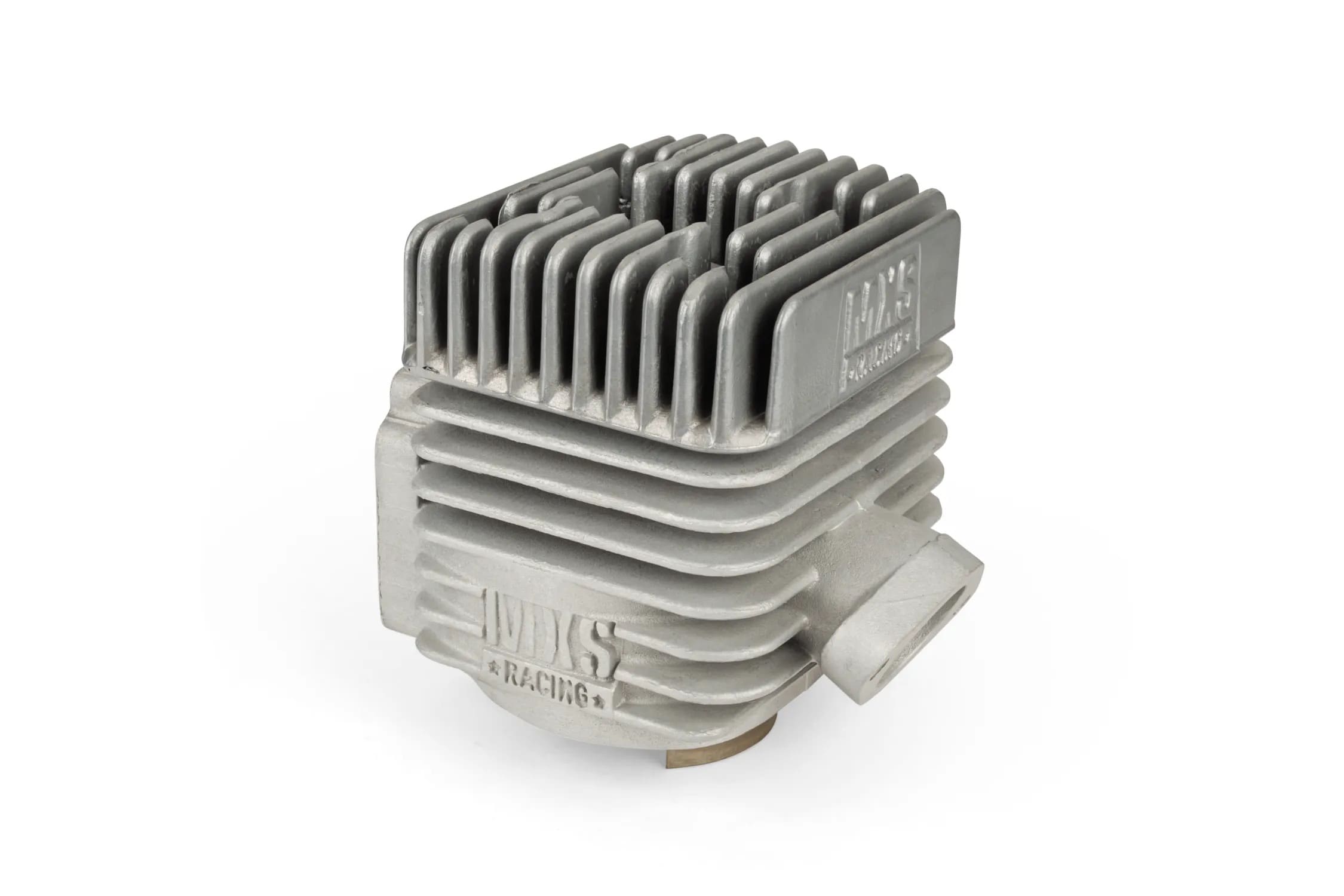

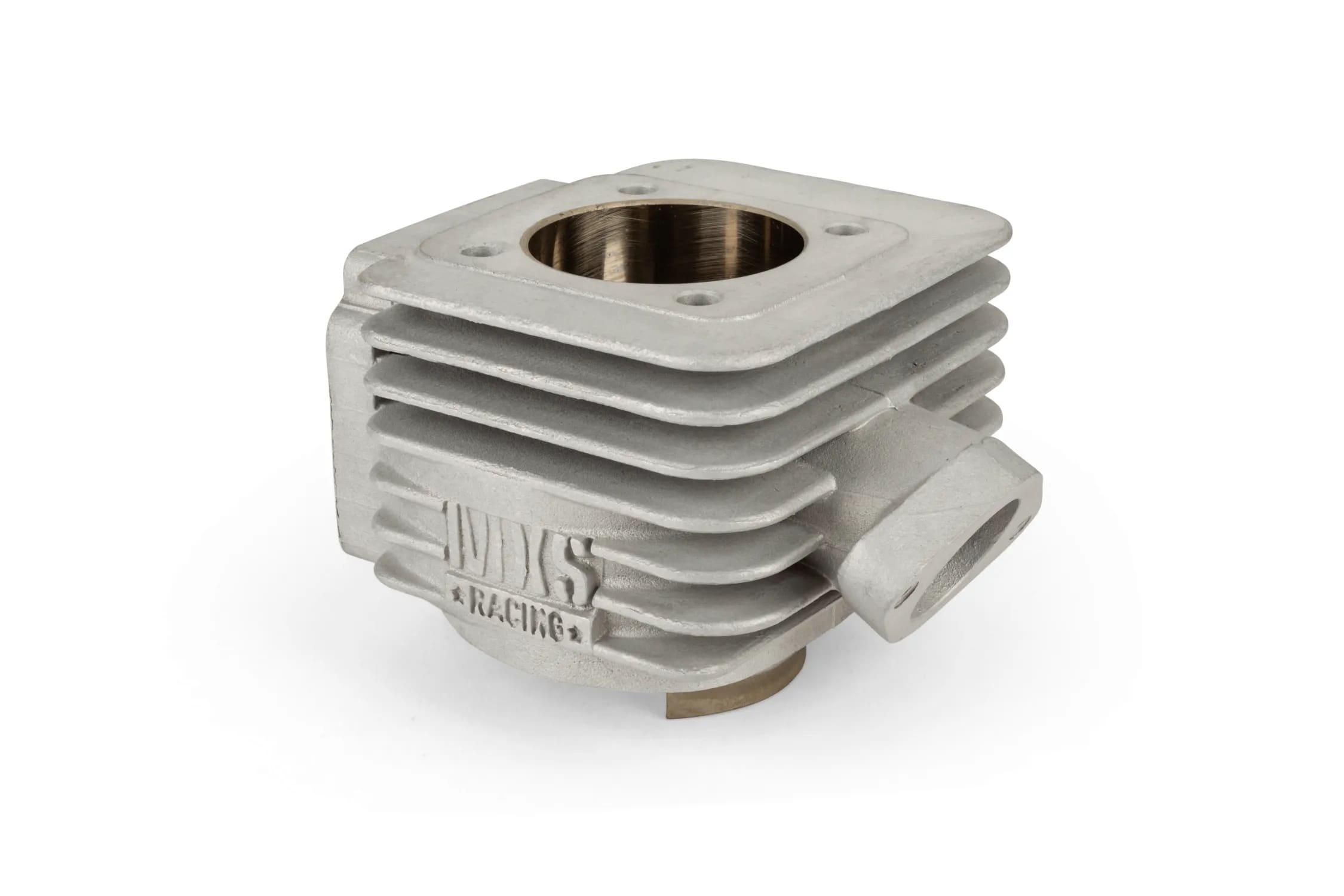

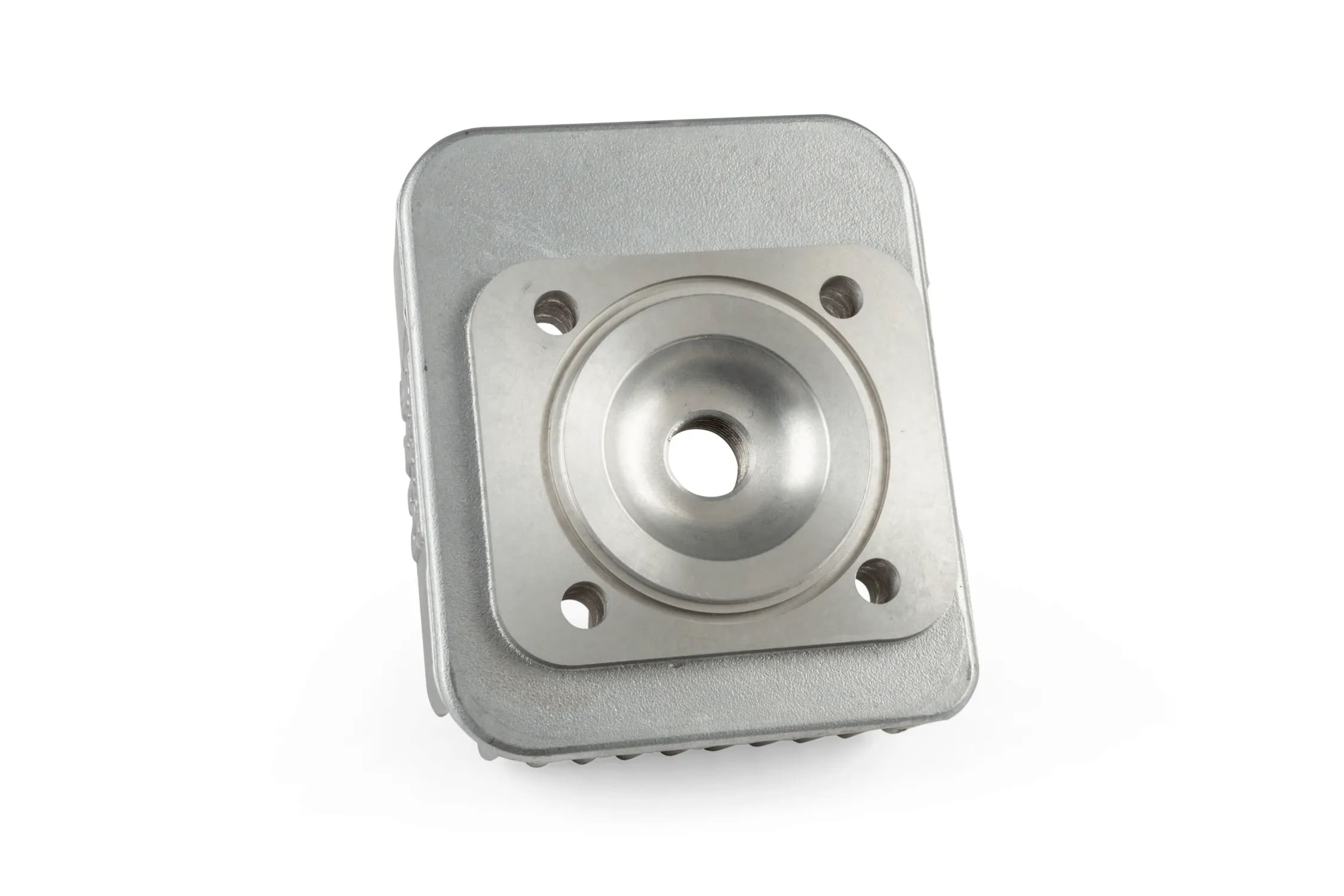

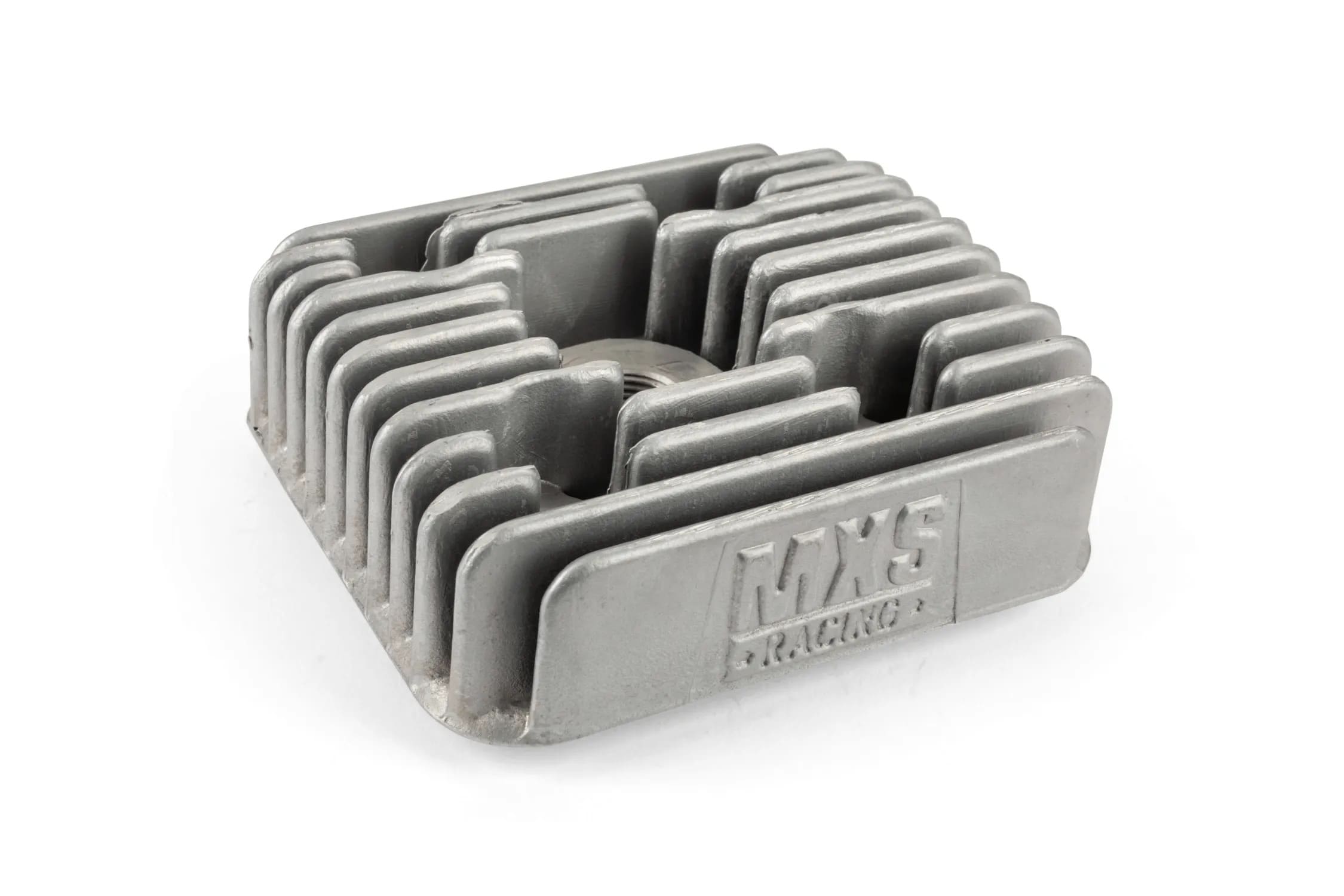

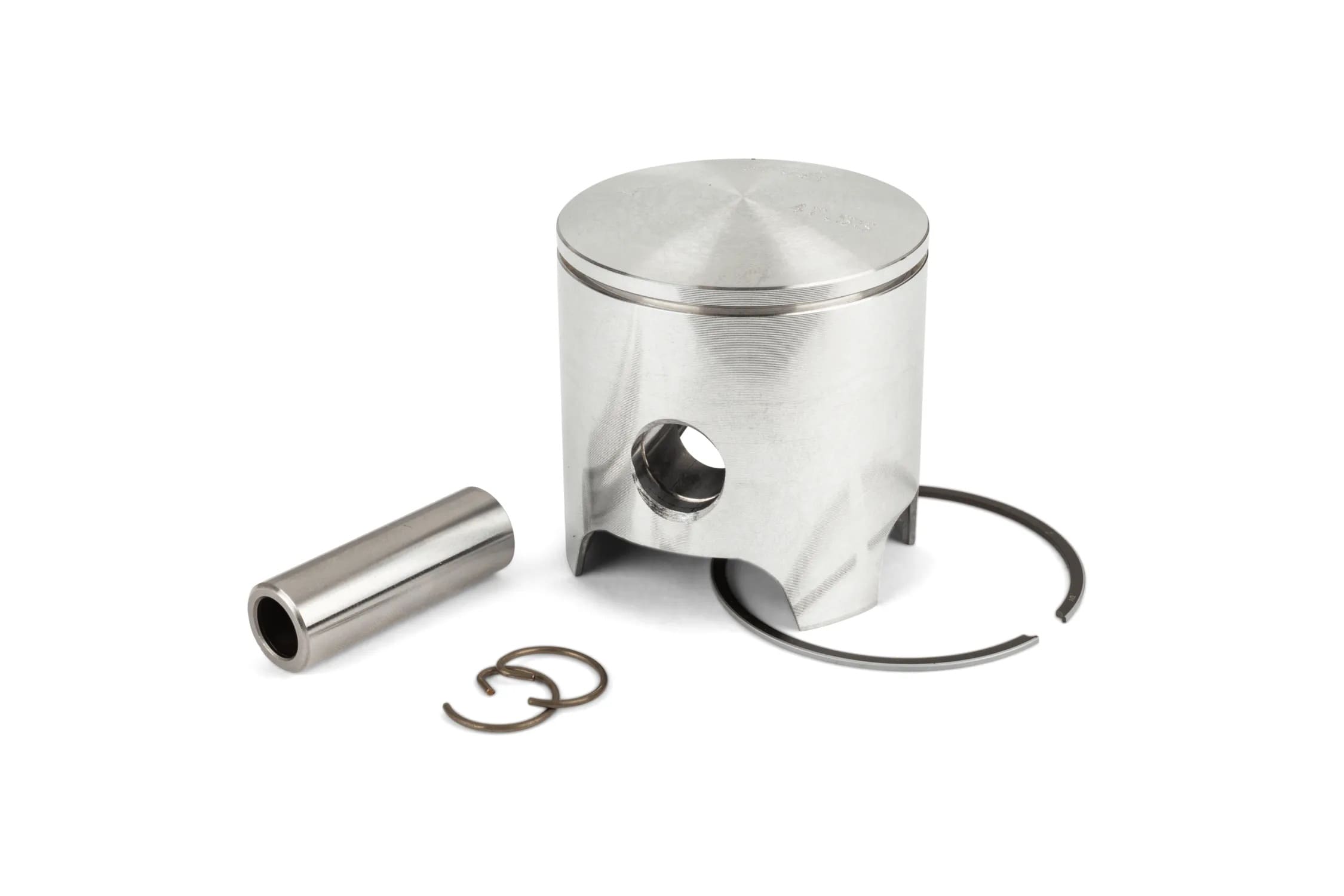

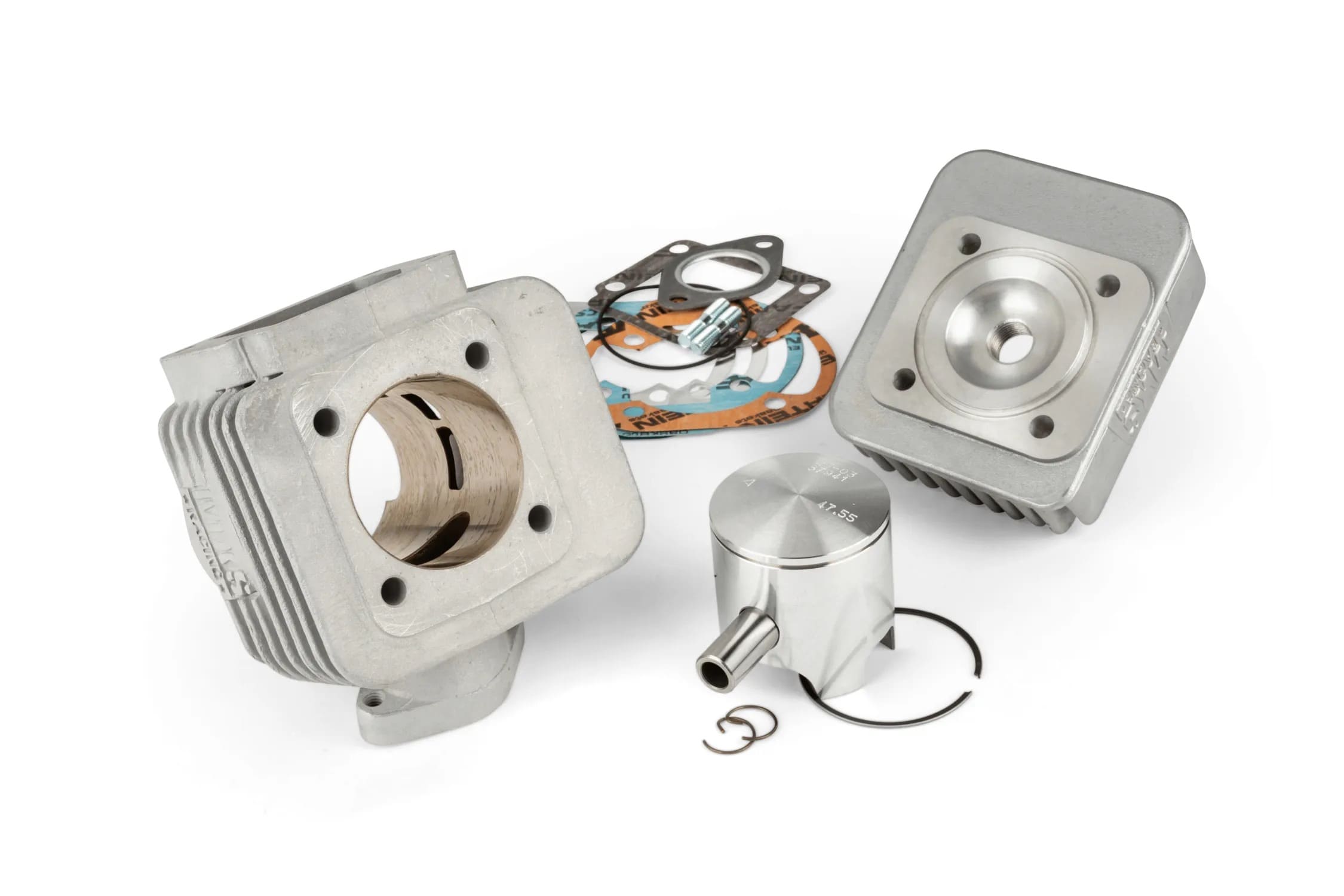

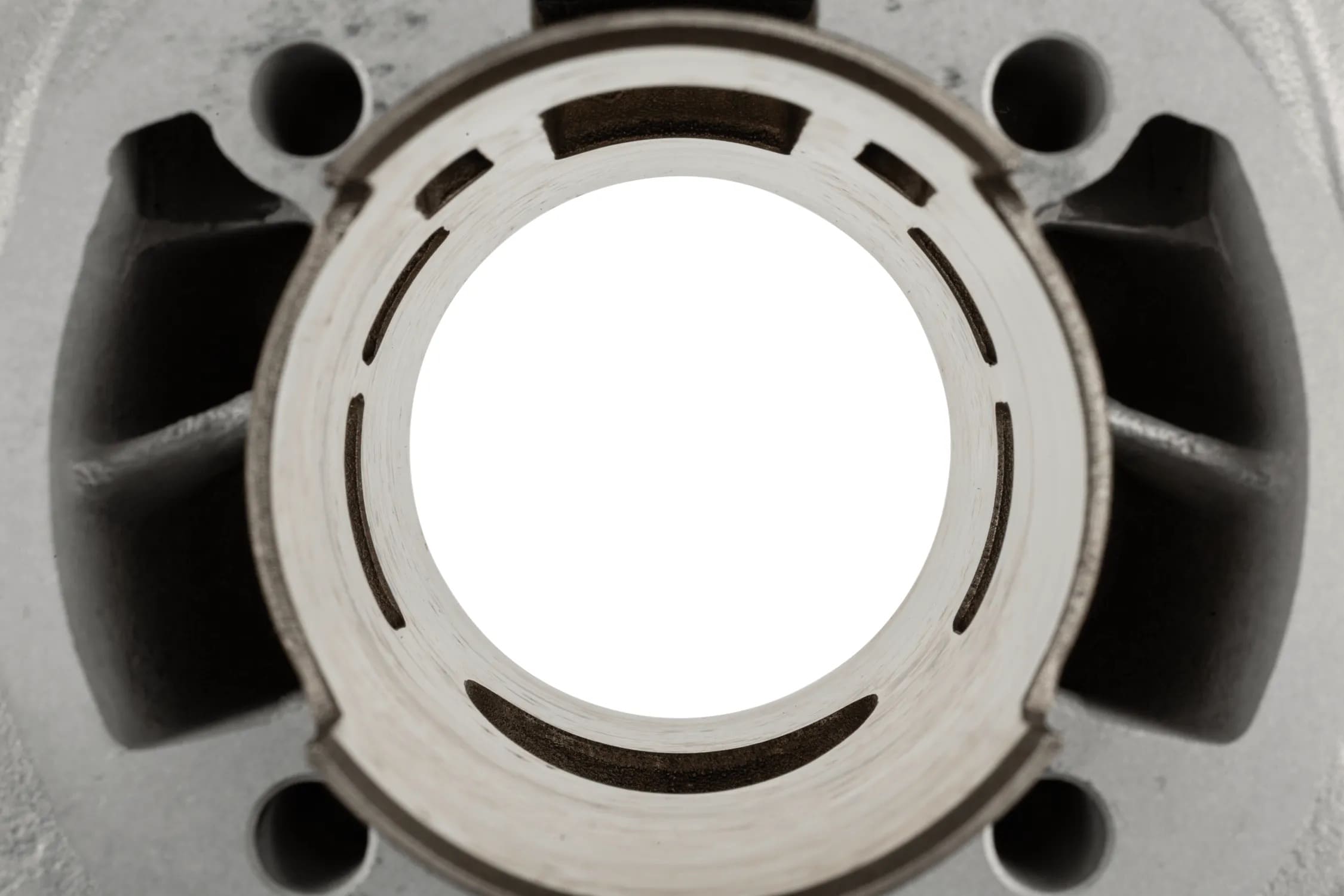

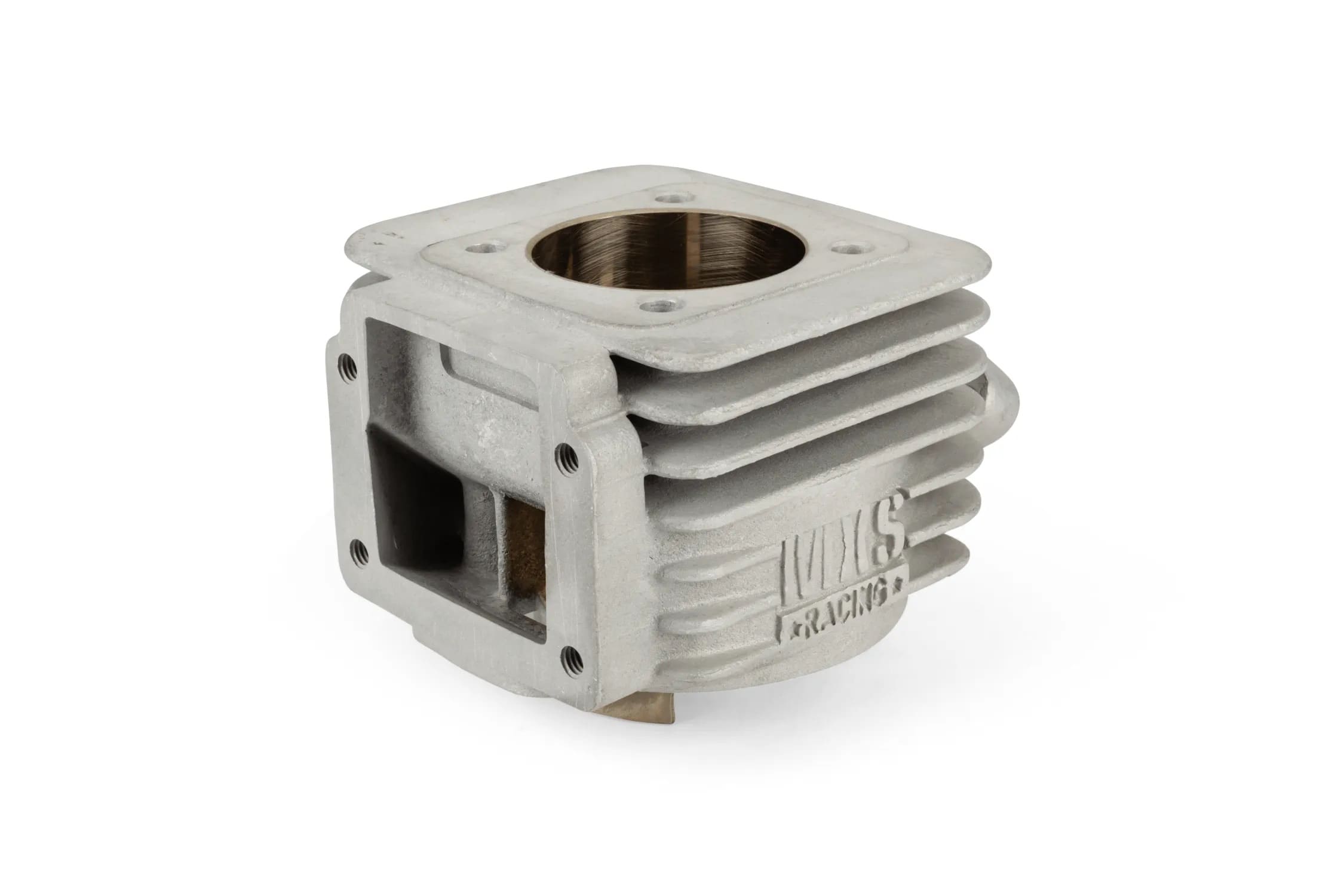

Racing Kit - Cylinder, Piston and Head - designed and developed by MXS Racing. The Nikasil coated aluminum cylinder has 5 transfer ports and an oval exhaust port. It comes with a HQ single ring piston (12mm pin) and a high compression head (196°/132°/134° opening times). With 19hp “out of the box”, in combination with the right set-up, but without any modifications to the cylinder or bottom end, this kit will excite even the most demanding racer. To unlock the full potential of this cylinder, we recommend a 28mm carburetor (at least 21mm), a “Big Valve” reed valve, a digital ignition and a high quality trophy crankshaft (12mm). You will need to use a Hyper Racing exhaust to use this kit, otherwise the cylinder will overheat! We recommend the MXS Racing 2014, Stage6 R1400 or at least the Yasuni Carrera 16 (flange diam. 26mm and stinger tube diam. min. 16mm!). The kit comes complete with piston (pin, piston rings and piston rings included) and gaskets for assembly. To ensure you get the maximum power and reliability from this cylinder kit, you must definitely adjust the "squish distance" during assembly (cylinder spacers are included). For Minarelli vertical engines - Diameter: 47.6mm - Stroke: 39mm - Note: piston pin = 12mm.
Compatibility Table
MINARELLI VERTICAL
RACING ADLY RAPID 50CC
RACING APRILIA AMICO GL 50CC AC
RACING APRILIA AMICO SPORT 50CC AC
RACING APRILIA AMICO 50CC AC (FROM 93)
RACING APRILIA AMICO 50CC AC (BETWEEN 91 AND 92)
RACING APRILIA SR 50CC AC (BEFORE 94)
RACING ITALJET PISTA 2 50CC AC
RACING ITALJET PISTA 50CC AC
RACING ITALJET SCOOP 50CC
RACING MBK BOOSTER ONE 50CC 2013
RACING MBK BOOSTER ROCKET 50CC AC
RACING MBK BOOSTER TRACK 50CC AC
RACING MBK STUNT 50CC AC
RACING MBK STUNT NAKED 50CC AC
RACING MBK BOOSTER 50CC AC (FROM 04)
RACING MBK BOOSTER 50CC AC (OF 92 BEFORE 99)
RACING MBK BOOSTER NEXT 50CC AC (FROM 99)
RACING MBK BOOSTER NEXT 50CC AC (BEFORE 99)
RACING MBK BOOSTER SPIRIT 50CC AC (BEFORE 04)
RACING MBK STUNT 50CC AC CAT (FROM 04)
RACING YAMAHA BWS 50CC AC
RACING YAMAHA BWS BUMP 50CC AC
RACING YAMAHA BWS EASY 50CC 2013
RACING YAMAHA SPY 50CC AC
RACING YAMAHA TARGET 50CC
RACING YAMAHA ZUMA 50CC AC
RACING YAMAHA ZUMA II 50CC AC
RACING YAMAHA BWS 50CC AC (FROM 04)
RACING YAMAHA BWS NG 50CC AC (SINCE 99)
RACING YAMAHA BWS NG 50CC AC (BEFORE 99)
RACING YAMAHA SLIDER 50CC AC (BEFORE 04)
RACING YAMAHA SLIDER 50CC AC CAT (FROM 04)
Code: MXS31445476
The Product may be reserved exclusively for competitions in places specially designated for such purposes according to the provisions of the competent sports authorities. We decline all responsibility for improper use.
