316926 CYLINDER MALOSSI SPORT cast iron cylinder kit D.47 air-cooled

Do you use your scooter on a daily basis but are looking for more power? We have the solution to your needs with this Malossi 70cc "Sport" cast iron cylinder head kit for Piaggio / Gilera with air cooling .

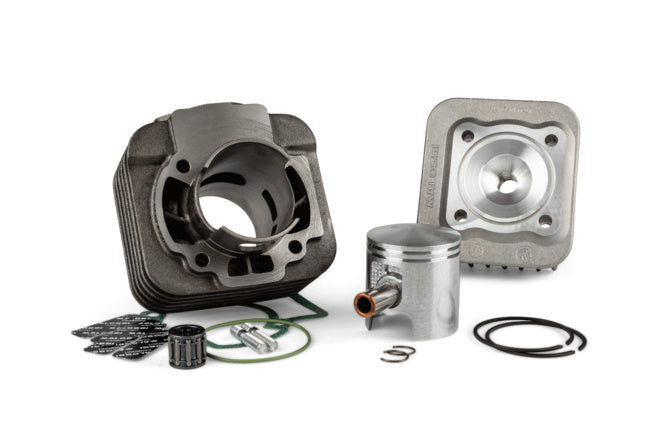

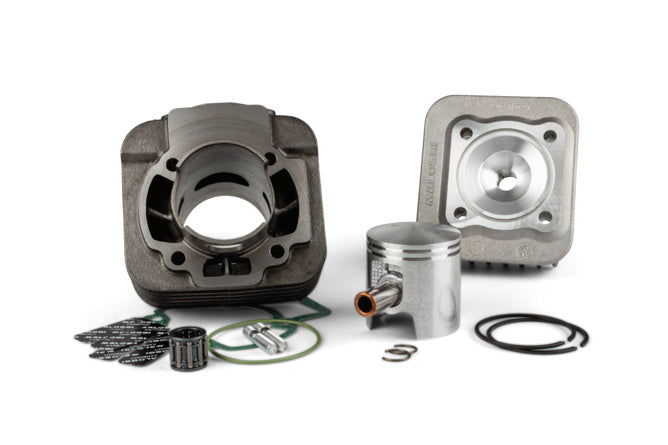

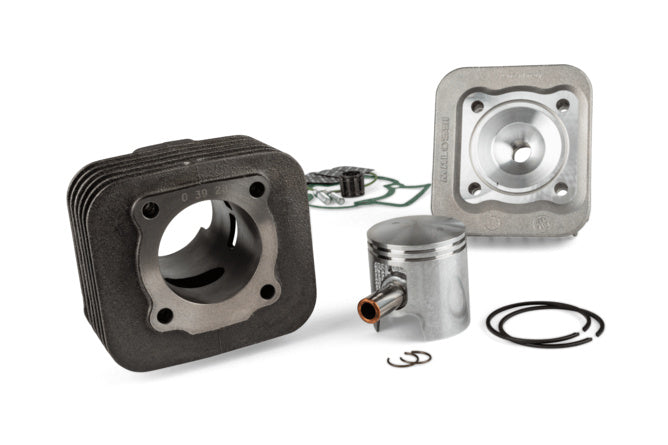

CONTENTS OF THE 70 MALOSSI ZIP 2T KIT

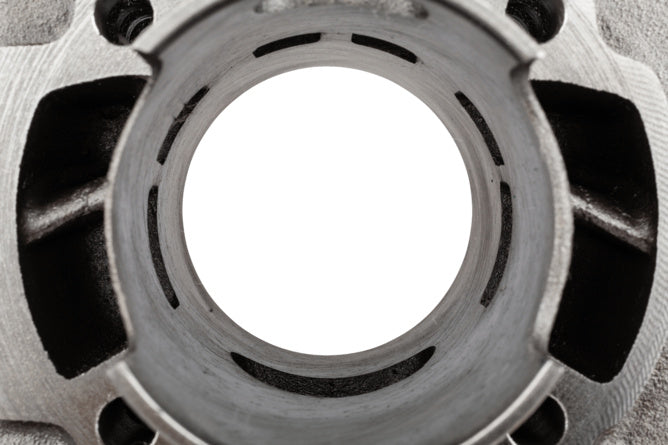

• 70cc cast iron cylinder with 6 ports and single oval exhaust pipe

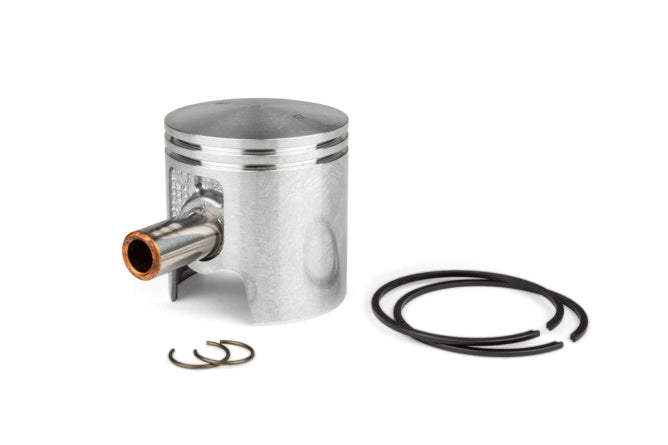

• Double ring piston

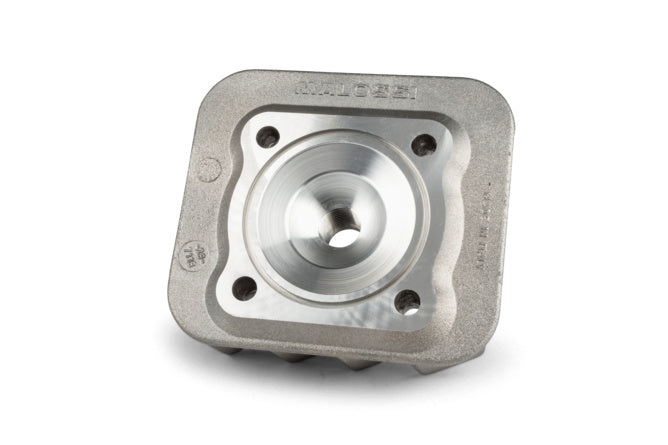

• High compression one-piece aluminum cylinder head

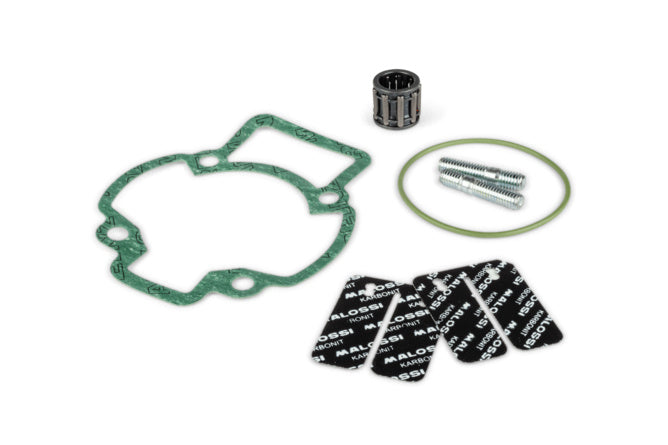

• Gasket kit required for assembly

PERFORMANCE KIT 70 PIAGGIO ZIP 2T

Developed for intensive use, this Malossi 70cc cast iron cylinder head kit for air-cooled Piaggio engines is therefore very resistant to wear and requires little maintenance.

Powerful especially at medium revs, it can develop between 8 and 9 HP with the right configuration.

SUGGESTION:

To fully exploit the potential of this cylinder kit, we recommend combining it with at least a 17.5mm carburetor and a sports exhaust.

Since this Malossi cylinder kit is 70cc, it is not approved for road use !

Examples of compatible models: Piaggio Zip, Piaggio Typhoon, Gilera Stalker...

Adaptable to

APRILIA APRILIA MOJITO CUSTOM 50 2T

APRILIA APRILIA SCARABEO STREET 50 2T (PIAGGIO)

APRILIA APRILIA SPORTCITY ONE STREET 50 2T euro 2

APRILIA APRILIA SR MOTARD 50 2T euro 2

DERBI DERBI ATLANTIS - BULLET 50 2T 2003->

GILERA GILERA EASY MOVING 50 2T

GILERA GILERA ICE 50 2T

GILERA GILERA STORM 50 2T

GILERA GILERA STALKER 50 2T

GILERA GILERA TYPHOON 50 2T

GILERA GILERA TYPHOON X 50 2T

ITALJET ITALJET JET SET 50 2T

ITALJET ITALJET TORPEDO NEW 50 2T

PIAGGIO PIAGGIO DIESIS 50 2T

PIAGGIO PIAGGIO NRG EXTREME 50 2T

PIAGGIO PIAGGIO FLY 50 2T

PIAGGIO PIAGGIO FREE 50 2T

PIAGGIO PIAGGIO LIBERTY 50 2T

PIAGGIO PIAGGIO NRG MC3 DT 50 2T

PIAGGIO PIAGGIO NRG Power DT 50 2T (C453M)

PIAGGIO PIAGGIO SFERA RESTYLING 50 2T

PIAGGIO PIAGGIO SFERA 50 2T

PIAGGIO PIAGGIO TYPHOON 50 2T 2007->2010

PIAGGIO PIAGGIO TYPHOON 50 2T euro 2 2011 (C421M)

PIAGGIO PIAGGIO ZIP Fast Rider 50 2T

PIAGGIO PIAGGIO ZIP 50 2T 2000

PIAGGIO PIAGGIO ZIP 50 2T

VESPA VESPA ET2 50 2T 2000

VESPA VESPA ET2 carb. 50 2T

VESPA VESPA LX 50 2T

VESPA VESPA S 50 2T euro 2 (C381M)

SPARE PARTS LIST

19 3298E 2 STUDS M 6x18 (UNI 5911) for MARM

35 4501.40 2 SEGMENTS Ø 47.4x1.5 rectangular

35 4501.80 2 SEGMENTS Ø 47.8x1.5 rectangular

35 4501 2 SEGMENTS Ø 47x1.5 rectangular

27 7054.C0 6 REEDS f.CARB. 2 thickness 0.30/0.35/0.40 VL11/VAL.ORIG.

11 6923 COMPLETE SEAL ENVELOPE CYL.Ø 47 for ORIGINAL HEAD

11 7570 COMPLETE ENVELOPE GR.TERM.Ø 40-47-47.6

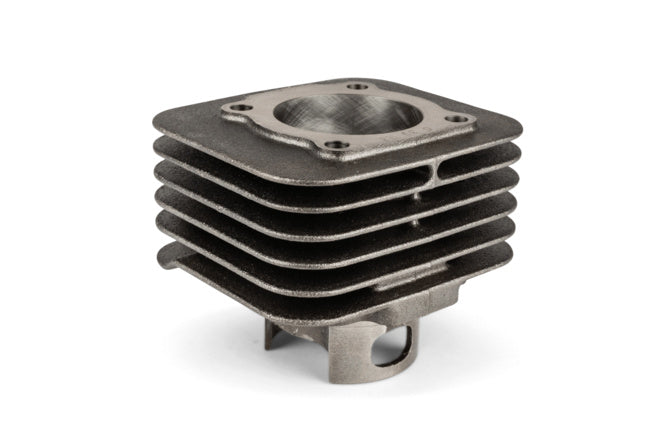

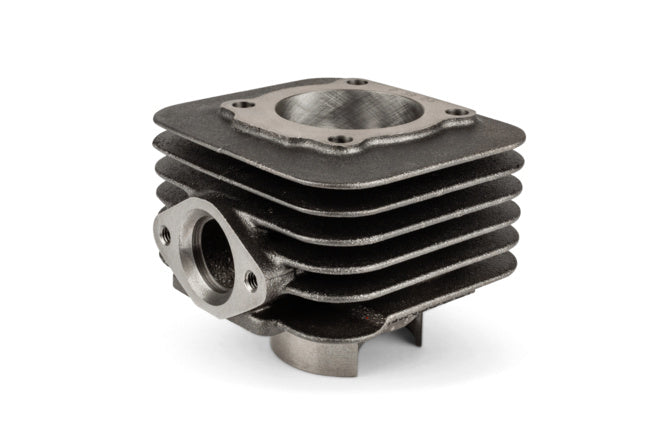

31 6915 CYLINDER Ø 47 cast iron thickness Ø 12

ALSO ADAPTABLE to the ORIGINAL HEAD

36 4450 PIN STOP Ø 12x1 C-shaped

6611785B ROLLER CAGE Ø 12x17x16

06 4993B O-RING Ø 51.5x55.06x1.78 mm for HEADS Ø 40-47

34 7036.A0 PISTON Ø 47 A thickness Ø 12 seg.2 rect.

34 7036.B0 PISTON Ø 47 B thk.Ø 12 seg.2 rect.

34 7036.C0 PISTON Ø 47 C thickness Ø 12 seg.2 rect.

34 7036.D0 PISTON Ø 47 D thickness Ø 12 seg.2 rect.

34 7036.E0 PISTON Ø 47 E thickness Ø 12 seg.2 rect.

34 7036 PISTON Ø 47 thickness Ø 12 seg.2 rect.

34 7036.40 PISTON Ø 47.4 thickness Ø 12 seg.2 rect.

34 7036.80 PISTON Ø 47.8 thk. Ø 12 seg.2 rect.

2311783B PIN Ø 12x08x38 for PISTON

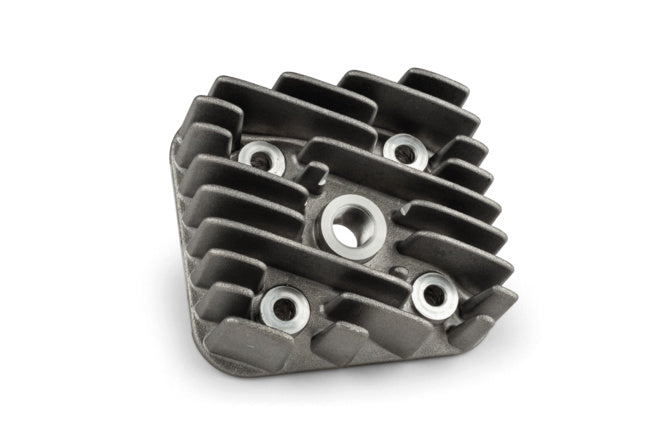

38 7118 HEAD Ø 47 aluminium AIR HTSR

Code: 316926

The Product may be reserved exclusively for competitions in places specially designated for such purposes according to the provisions of the competent sports authorities. We decline all responsibility for improper use.
