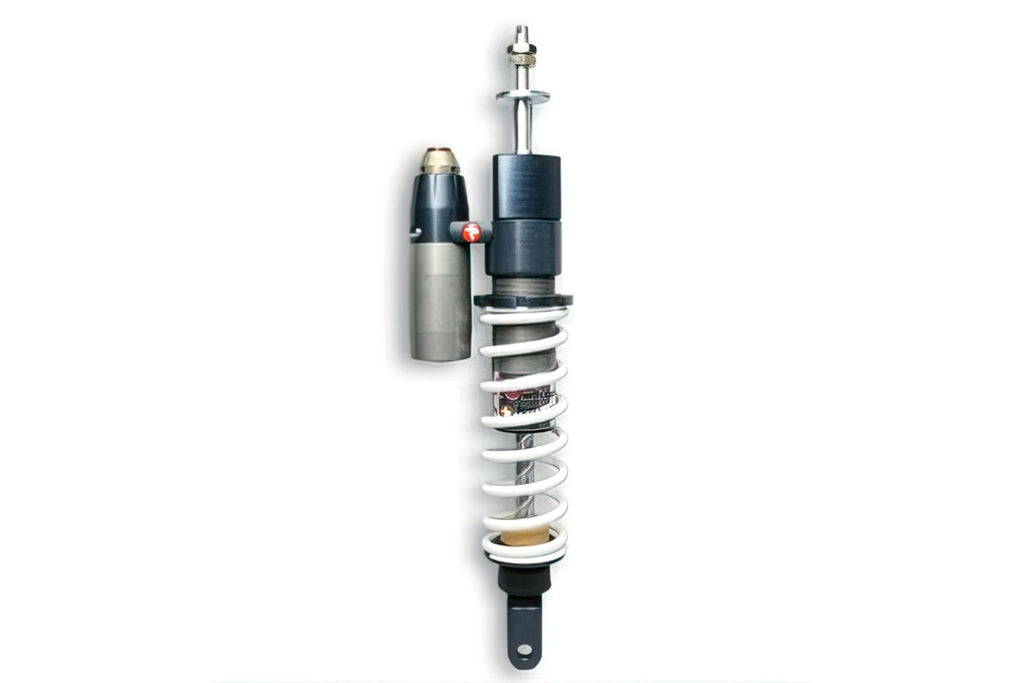

4614237 MALOSSI RS24/10-R REAR SHOCK ABSORBER GILERA RUNNER 50 2T LC, wheelbase 290 mm -
Description
From the collaboration of Malossi technicians with Paioli, a truly superlative suspension was born, compact and super light, made entirely of ergal, with the exception of the stem and the spring.
A true variable-rate oleopneumatic suspension, with hydraulic adjustment in extension and compression, compensated by a pressurized nitrogen chamber.
The project was studied at length by the technicians of the two companies who, accustomed to teamwork for years, combined their experiences to create an innovative suspension.
The versatility of this suspension has proven to be surprising thanks to the 3 new adjustment systems, which enhance its use on the road and on the track:
adjustment of the hydraulic system in extension to absorb all the roughness of the terrain;
double adjustment of the hydraulic compression system (separate for low and high speed);
spring preload to adapt the vehicle to the riding position;
system for varying the set-up for cornering behaviour.
Technical features
These special shock absorbers have technical characteristics that represent the maximum technological expression available on the market today:
Type: oleopneumatic shock absorber with separate compensation tank
Use: racing scooter
Shock absorber rod Ø 14 mm in 38 NiCrMo4UNI 7845 steel, hardened and tempered with 25-30 micron thick hard chrome deposit (surface hardness of the shaft not yet treated HRC 55/60)
Piston Ø 36 mm with two independent reed valves, one in compression and one in extension
New lamellar system in harmonic steel that allows for extremely precise calibration
Piston guide shoe type LUBRIFLON-PTFEB70 (modified compound filled with bronze)
Sliding on DU GUIDE bush (compound obtained by sintering a layer of spheroidal bronze on a suitably pressed mild steel strip and with subsequent impregnation and coating of a PTFE+FB mixture)
SEALTHANE Grade 9345 Polyester Resin Scraper Ring
Micrometric adjustment of the spring pre-load via rings
Adjustment of hydraulic rebound damping preselectable on approximately 24 positions
Double adjustment of the hydraulic compression damping, pre-selectable on approximately 10 positions each, separate for low and high speed
Special oil with low viscosity and practically insensitive to temperature variations
External compensation tank that allows an increase in the quantity of internal fluids
Wheelbase adjustment of 25 mm (rear shock absorber only)
Wheelbase: rear 321 + 25 mm - front 181 mm
Travel: Rear 62mm - Front 45mm
Compatibility Table
GILERA RUNNER 50 2T LC
GILERA RUNNER SP 50 2T LC <-2005 GILERA RUNNER SP 50 2T LC 2006-> (C451M)
GILERA STORM 50 2T
GILERA EASY MOVING 50 2T
GILERA RUNNER PUREJET 50 2T LC <-2005 GILERA RUNNER PUREJET 50 2T LC 2006->
GILERA RUNNER FX 125 2T LC
GILERA RUNNER FXR - SP 180 2T LC
PIAGGIO NRG POWER 50 2T LC EURO 4 2018-> (CA71M)
PIAGGIO QUARTZ 50 2T LC
PIAGGIO ZIP SP 50 2T LC <-2000 PIAGGIO ZIP SP 50 2T LC 2001->
PIAGGIO FREE 50 2T
PIAGGIO ZIP 50 2T 2000->
PIAGGIO ZIP FAST RIDER 50 2T
PIAGGIO SFERA RESTYLING 50 2T
PIAGGIO LIBERTY 50 2T
PIAGGIO ZIP 50 2T <-1999
PIAGGIO SFERA 50 2T
VESPA ET2 50 2T <-1999 VESPA ET2 50 2T 2000->
VESPA S 50 2T EURO 2 (C381M)
Code: 4614237
The Product may be reserved exclusively for competitions in places specially designated for such purposes according to the provisions of the competent sports authorities. We decline all responsibility for improper use.
